Hello Folks,

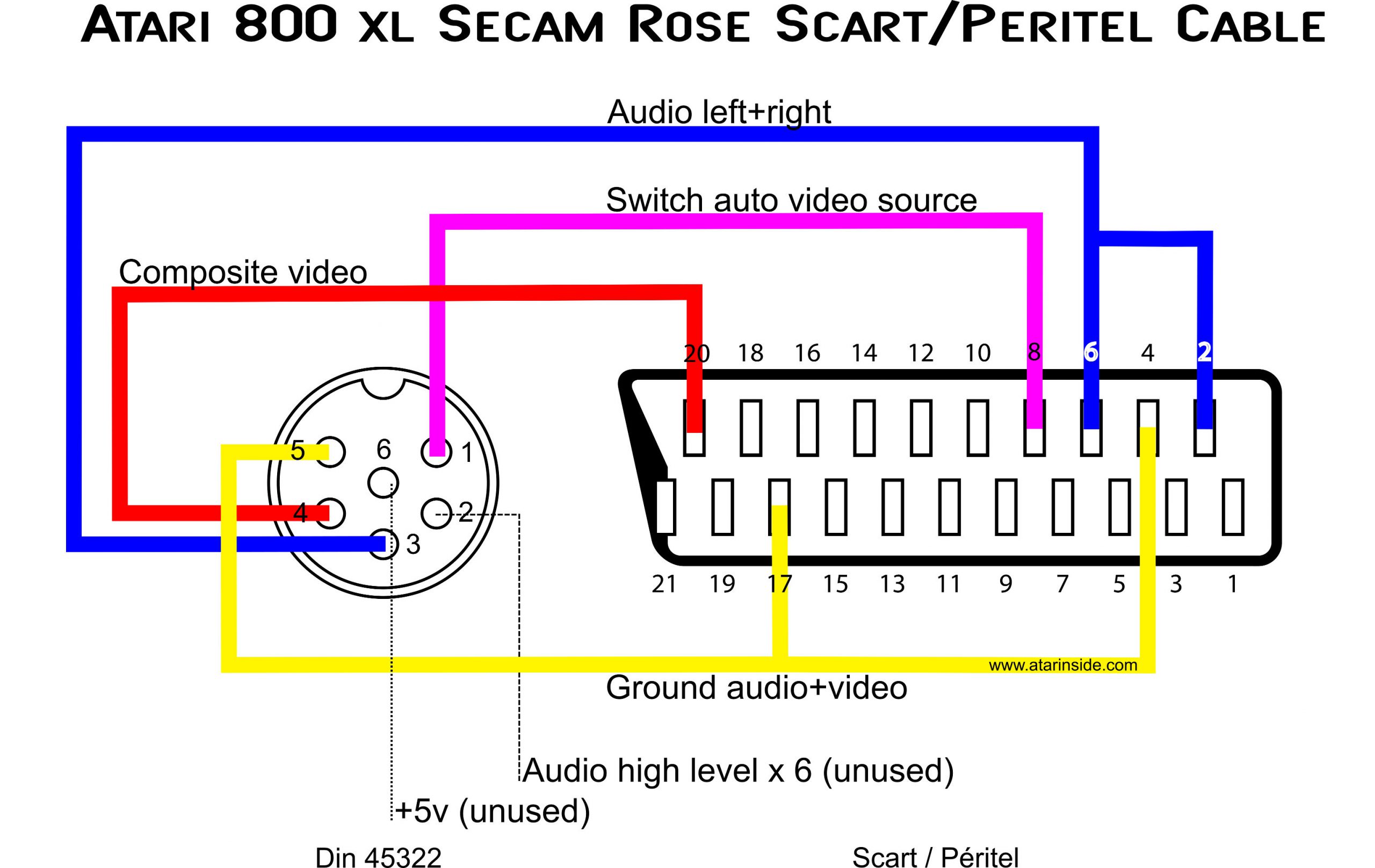

Here’s the schematics of the Scart / Peritel cables for the Atari 8 bits

“Secam Rose” 800XL (and other Secam Atari 8 bits XE/XL).

You’ll need a male DIN 6 Pins (aka DIN 45322) and a male  Scart Cable.

NTSC/PAL 800XL (and others Atari 8 bits XE, XL)

You’ll need a male 180° DIN 5 Pins (aka DIN 41524) and a male  Scart Cable.
